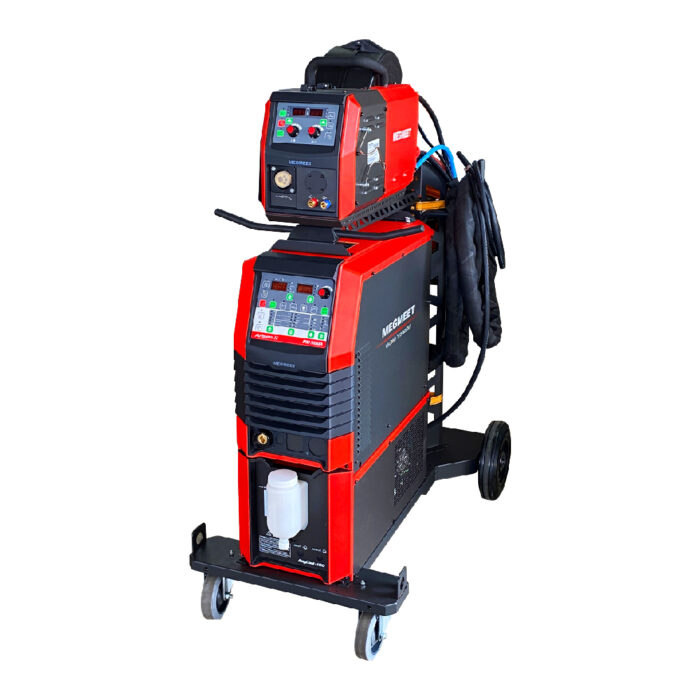

MEGMEET ARTSEN Ⅱ PM500AD MIG WELDING MACHINE 3PH/415V

RM37,400.00

  • Model : ARTSEN II PM500AD
  • Warranty : 2 Years
  • Synergic / Pulse / Double Pulse MAG for Carbon Steel and Stainless Steel
  • Pulse & Double Pulse MIG for Aluminum and alloy
  • Come with Cooling Unit & Trolley

For any further inquiries, feel free to contact us.

Purchase this product now and earn 37,400 Points!
Compare
Add to wishlist
SKU: M2433500203 Category:
Description
  • Digital Microprocessors Controlled Inverter Technology
  • Synergic control of MIG / MAG / CO2 process, Pulse / Double Pulse MIG / MAG
  • Stable welding with stick out length up to 30mm
  • Standard locking function for both front panel locking & parameters range locking
  • Standard job saving features (up to 50 jobs)
  • Supporting SMARC for networking
  • Supporting Up/Down torch
  • Supporting Push / Pull torch
  • MIG Brazing function as optional
  • Convenient for building multi-operator system
  • Proven record in heavy industries since 2014
  • High tolerance against input voltage fluctuation (25%+/-)
  • Superior reliability with self-protecting design and error code display for easy maintenance

Specification

  • Model : ARTSEN II PM500AD
  • Control Mode : Full Digital Control
  • Rated Input Voltage : AC 3PH 380V-25%~ 400V + 20% (3PH285V ~ 3 PH 475V)
  • Input Frequency : 30 ~ 80 Hz
  • Rated Input Power : 24Kva/ 22.3kw
  • Power Factor : 0.93
  • Efficiency : 87%
  • Rated OCV : 73.3V
  • Rated Output Current : 39V
  • Rated Output Voltage : 12V ~ 45V
  • Max Output Current : 500A
  • Duty Cycle (40°C / 10 min) : 500A / 39V 60%@40°C, 387A / 33.5V 100%@40°C
  • Wire Diameter : ⌀0.8 / 0.9 / 1.0 / 1.2 / 1.6 mm
  • Welding Operation Mode : 2T / 4T / Special 4T / Sport welding / Intermittent Welding
  • Electromagnetic : EN60974-20:20214
  • Insulation Grade : H
  • Ingress Protection : IP23S
  • Protection Against Lightening : Class D (6000V / 3000A)
  • Working Temperature : -39°C ~ +40°C
  • Welding Process : Synergic MAG / CO2, Single &Double Pulse MAG for Steel, Single & Double Pulse MIG for Aluminum
  • Material : Carbon Steel, Stainless Steel, Aluminum
  • Gross Weight (kg) : 57.5
  • Dimension (mm) : 620 x 300 x 480
  • Industrial Application : Automotive & Railway, Construction & Mining Machinery, Ship-Building & Marine Engineering, Heavy Steel Construction, Shipping Container
